Integration Guide Universal Robots

Note: It is strongly recommended to read the Robot communication overview prior to this integration guide.

Note 2: It is strongly recommended to use the latest version of the integration guide included in the latest available version of the robot module. To download the robot module, please visit the official Photoneo website.

Contents

1 Prerequisites

Prior to the setup, please ensure that your robot controller meets the following criteria:

E-series controller, software version 5.10 or higher
UR-series controller - software version support is yet to be determined based on future testing
CB-Series - not officially supported anymore

This version of the robot interface was developed and tested using Universal Robots E-Series v5.22 and v5.11.

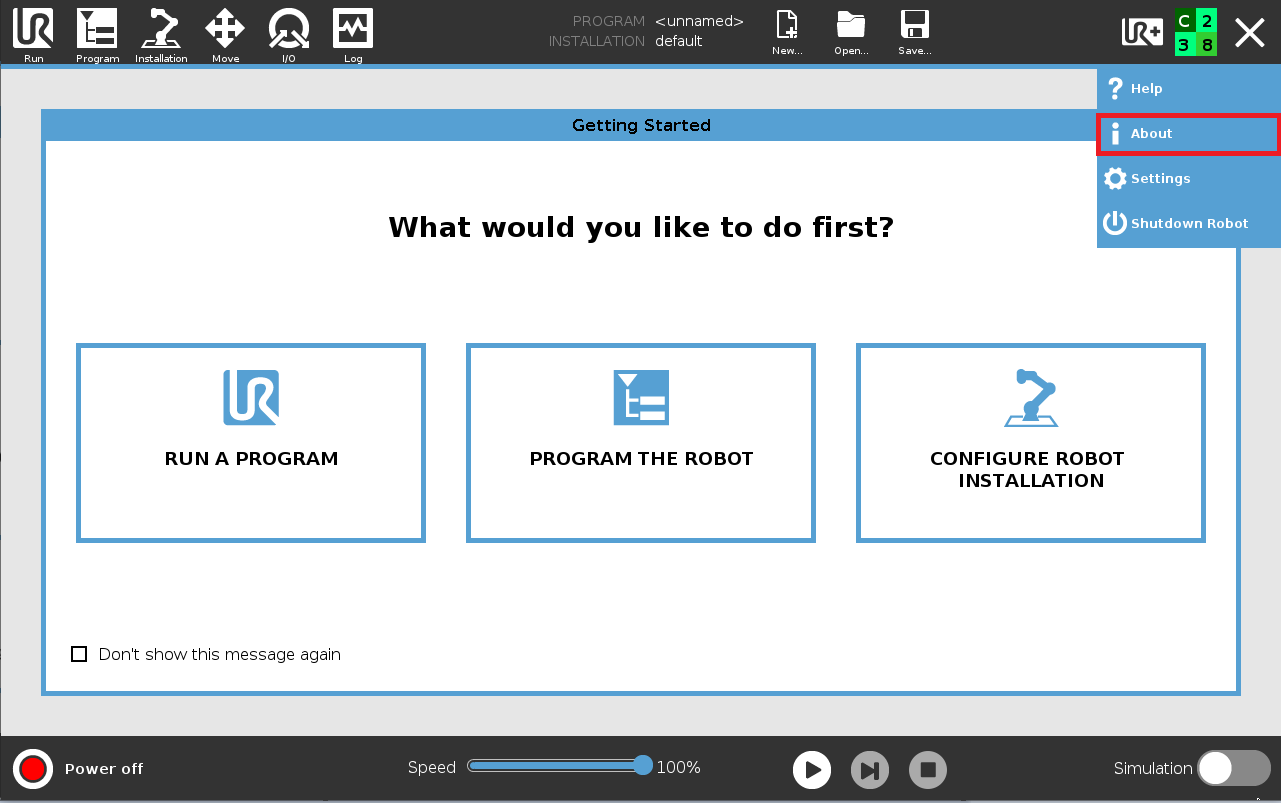

To check the software version on your robot, navigate to Menu -> About:

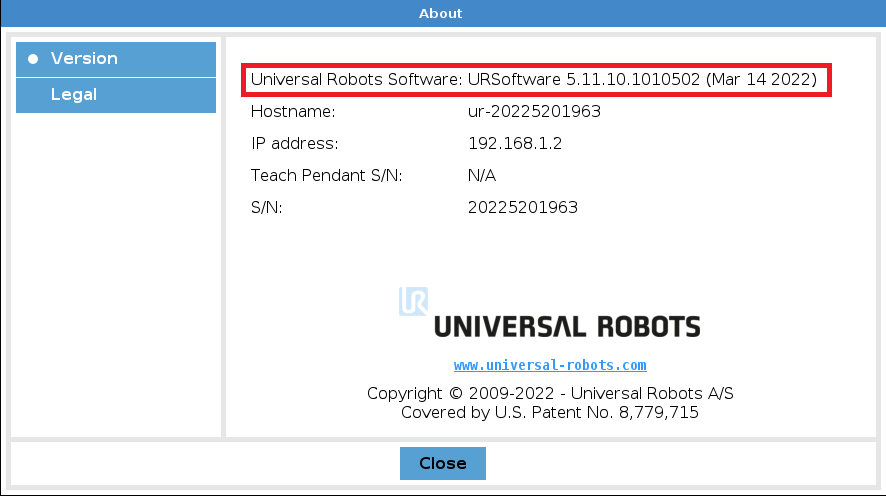

UR Software version is listed on the first line:

2 Robot Controller Setup

This chapter describes the network configuration, robot module file transfer, TCP setup and State Server configuration required for the robot controller to communicate with Bin Picking Studio.

2.1 Network Configuration

The first step is to configure the IP address of the Robot Controller port used for communication with the Photoneo Vision Controller.

Navigate to Menu -> Settings:
Open System -> Network. Select Static Address as the network method and enter the IP address and Subnet mask for the Robot Controller. The configuration used in this manual is 192.168.1.2 and 255.255.255.0.
Click Apply to confirm the changes.

Note: Subnet mask 255.255.255.0 equals the 24-bit subnet mask representation. See this table for more combinations: https://dnsmadeeasy.com/support/subnet

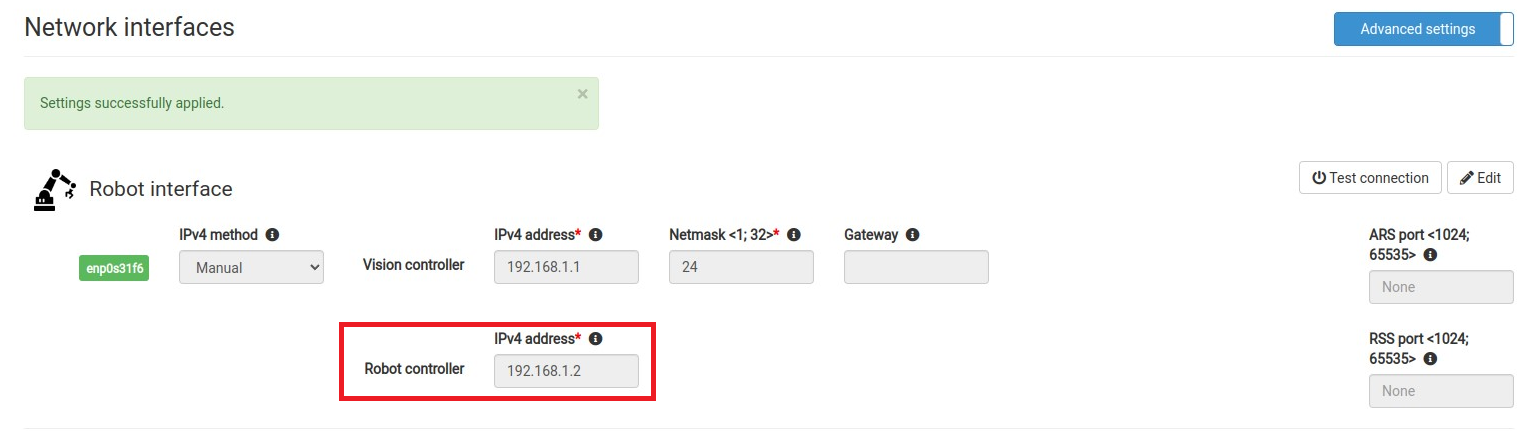

An example of a matching network configuration on the Vision Controller side:

Vision Controller IPv4 Address: 192.168.1.1 / 24
Robot Controller IPv4 Address: 192.168.1.2 / 24 (as configured in the previous step)

You can also use the Test Connection button on the Vision Controller’s Network page to ping the Universal Robots controller from the Vision Controller.

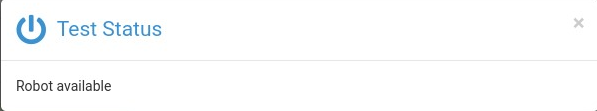

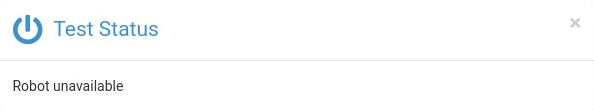

Based on the result of the Test Connection (ping) you will get a Robot Available or Robot Unavailable pop-up message. If the robot is unavailable, double-check the cabling and network configuration.

For more details please see the Network page documentation.

2.2 Enabling Real-Time Data Exchange (RTDE)

The State Server functionality (calibration and robot visualization) requires the Real-Time Data Exchange (RTDE) service to be enabled and running on the robot side.

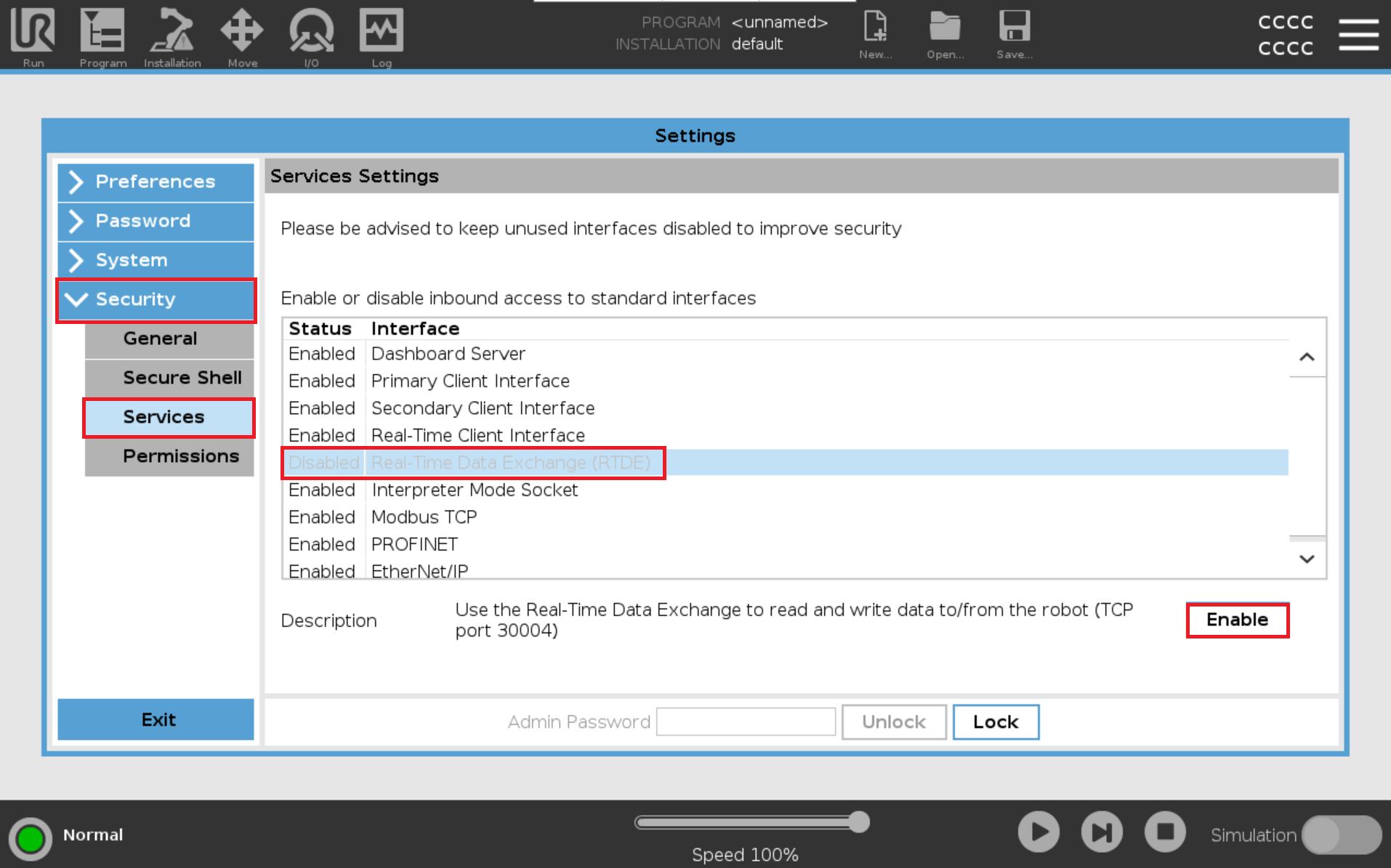

To verify that the service is running, navigate to Settings -> Security -> Services and make sure RTDE is enabled.

2.3 Loading of Robot Module Files

The Photoneo UR robot interface consists of 2 script files and several URP template programs:

photoneo_scripts
- photoneo_common.script
- customer_definitions.script
photoneo_examples
- pho_main_basic.urp
- pho_main_basic_hand_eye.urp
- pho_main_basic_multi_vs.urp
- pho_main_change_env.urp
- pho_main_change_solution.urp
- pho_main_get_object_pose.urp
- pho_main_get_status.urp
- pho_main_multiview_dynamic.urp
- pho_main_multiview_static.urp
- pho_main_reuse_scan.urp
- pho_calibration_basic
- pho_calibration_auto
- pho_change_bounding_box.urp

Only URP programs need to be copied - the required scripts are already included in the URP templates!

There are two ways to copy the files to the robot controller:

USB flash drive
File transfer protocols such as SCP, FTP or SFTP

USB flash drive

Copy the folders from the downloaded module archive onto a USB flash drive and plug the drive into either the pendant or the robot controller USB port.

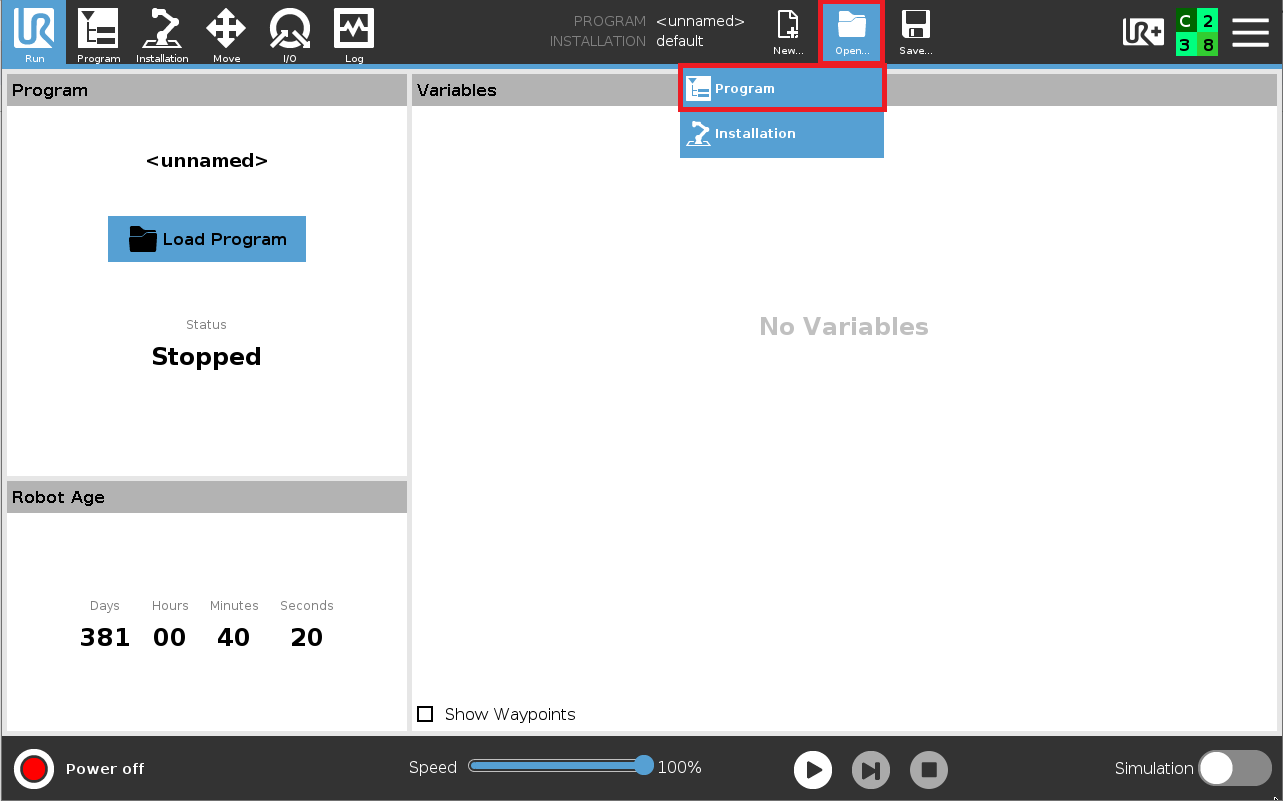

Click Open -> Program:

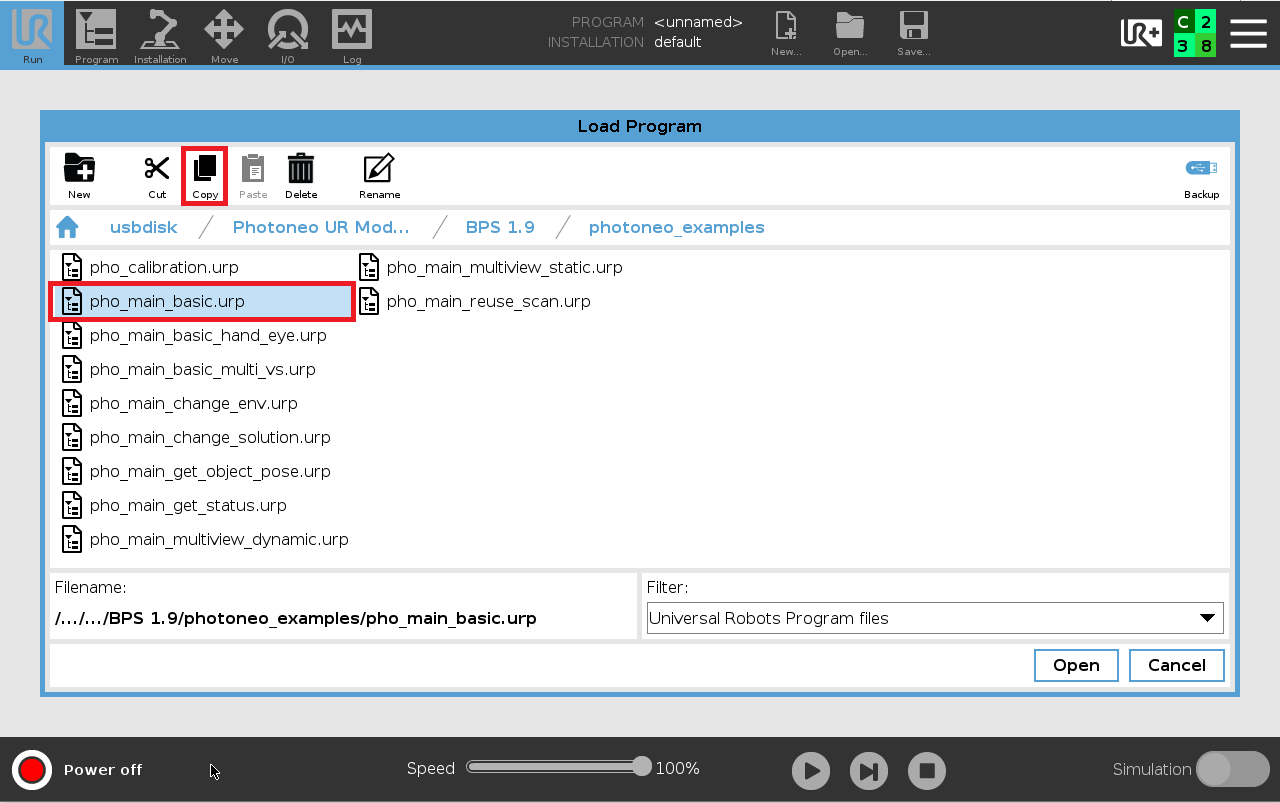

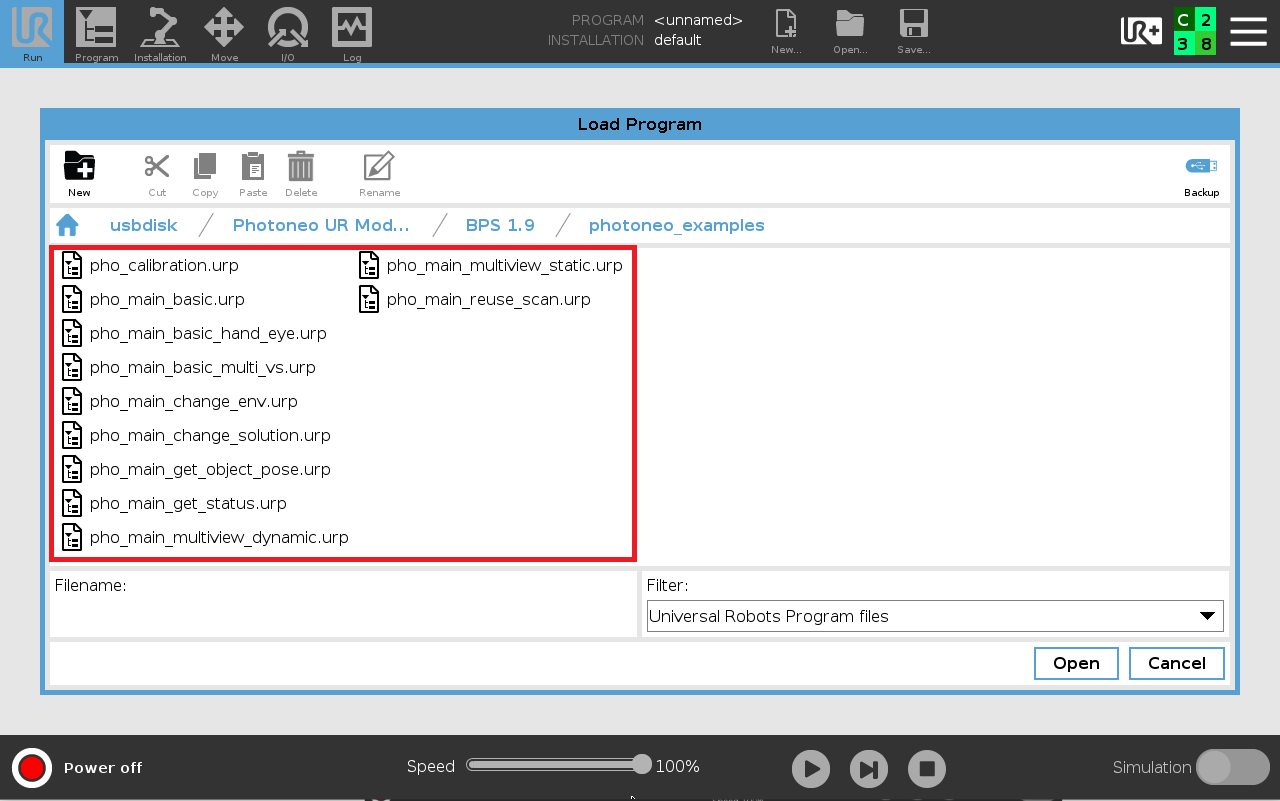

Select usbdisk -> Photoneo UR Module -> BPS 1.12 -> photoneo_examples:
To copy, for example, pho_main_basic.urp to the robot controller, select the file from the list and click Copy.

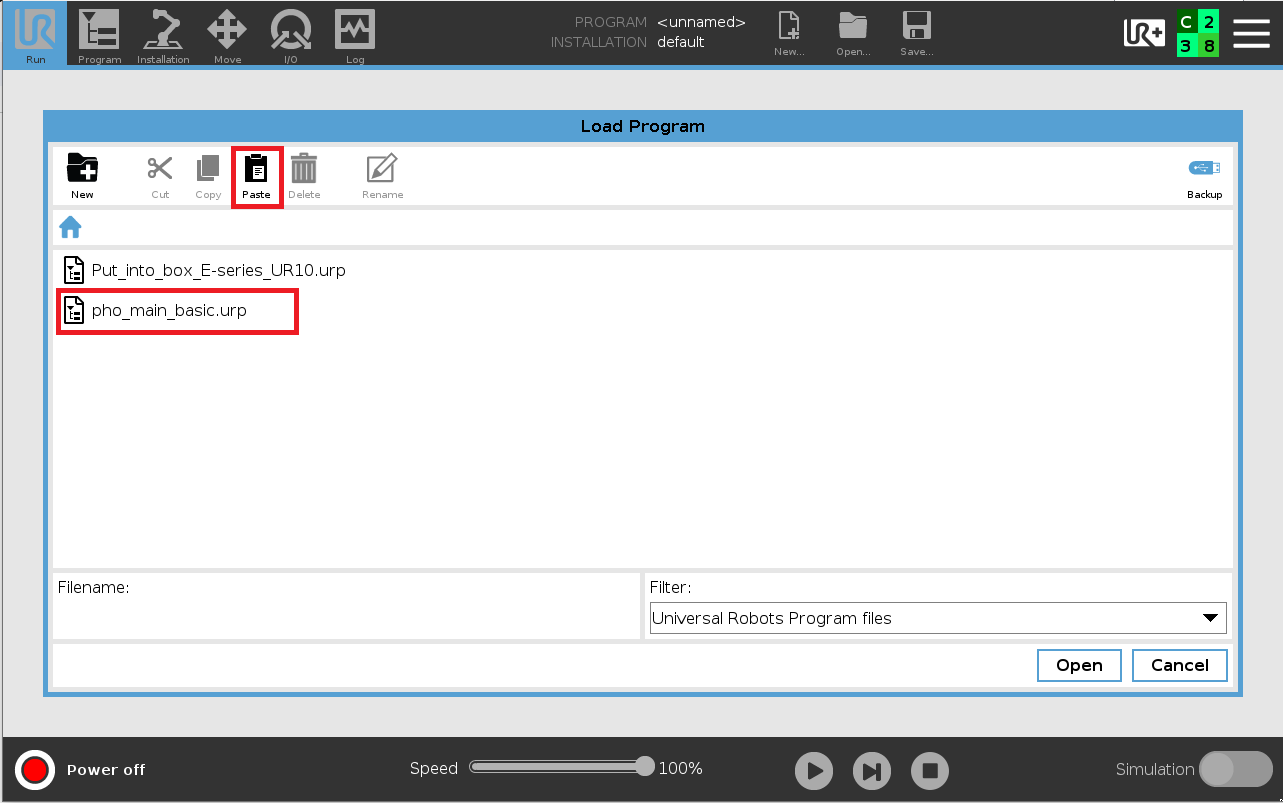

Navigate to a folder on the robot controller and click Paste to copy pho_main_basic.urp there.
Repeat this process for all template URP programs you plan to use in your project.

File transfer protocol

It is possible to copy files to the UR Controller using remote access directly from a PC. Use WinSCP, FileZilla or another SFTP/FTP client. When creating the connection use the following configuration:

Protocol: SFTP
Host: Robot IP address
Port: 22
User: root
Password: easybot

Alternatively, when a command line interface is preferred, use the following scp command to copy files:

$ scp -r Photoneo root@XXX.XXX.XXX.XXX:/programs/BPS 1.12

The default password is “easybot”.

2.4 Tool TCP Setup

Warning: In hand-eye configurations, Bin Picking Studio temporarily overrides the active TCP pose during the Scan Regular request. Specifically, the robot sets its TCP to the tool flange pose for the duration of the scan request and then reverts to the previously active TCP.

Note: This behavior may lead to inconsistencies when calling get_actual_tcp from parallel threads. Developers should account for this temporary TCP override to avoid unexpected results in multi-threaded applications.

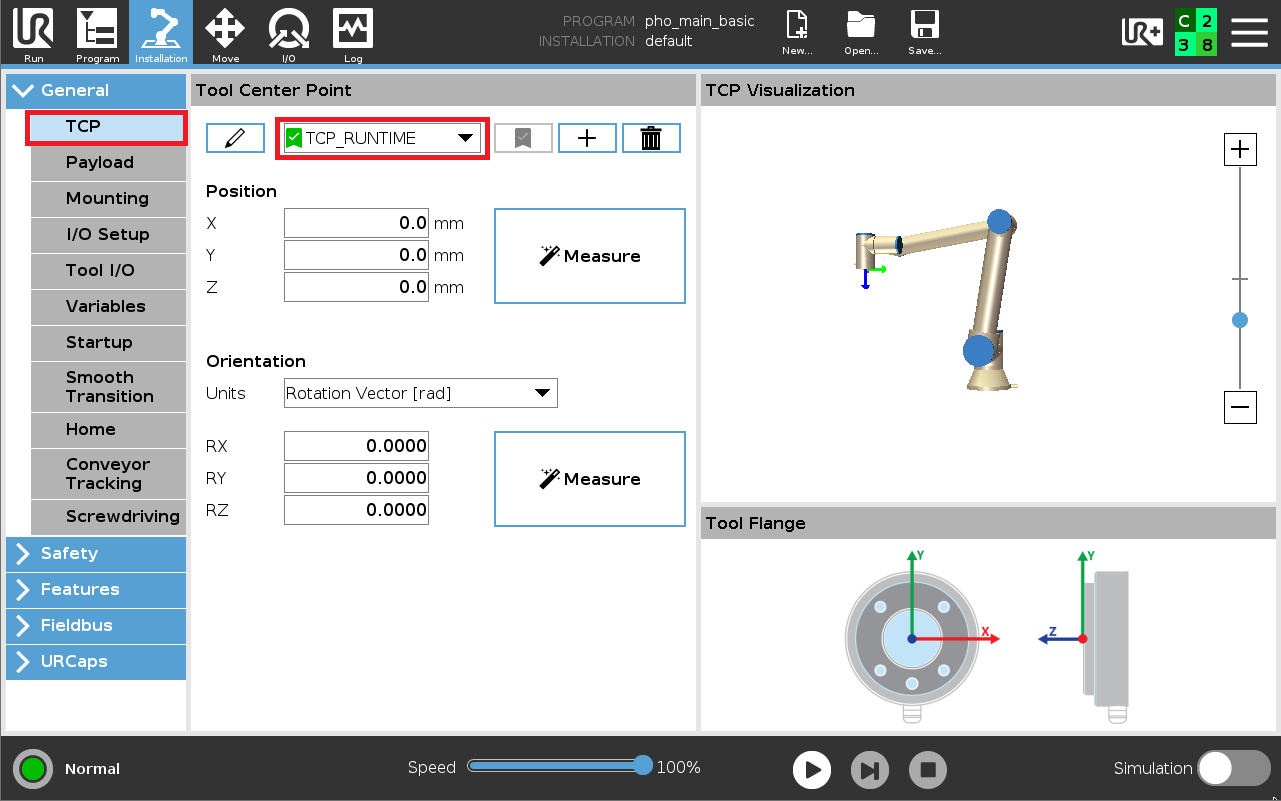

Bin Picking Studio favors a zeroed TCP setup. All TCP values should be set to zero, since TCP offsets are compensated internally on the Vision side. This configuration is also recommended during the calibration process to ensure alignment and accuracy.

2.5 State Server

If the RTDE service on the UR robot is enabled, Bin Picking Studio connects to RTDE port 30004 and reads the current joint poses and Cartesian tool position from the Universal Robots controller. Joint poses are used for robot visualization purposes, while the Cartesian TCP data is essential for calibration as well as all hand-eye scan requests.

The State Server can also be useful for preliminary configuration checks, for example visualizing the current robot and gripper state on the Environment page, as shown below, using the Robot Module motion mode.

If the State client is connected to the robot, the current joint and tool data is being streamed from the robot to Bin Picking Studio at 125 Hz or 500 Hz. Visualization of the robot pose on the Environment page as well as calibration should now work correctly.

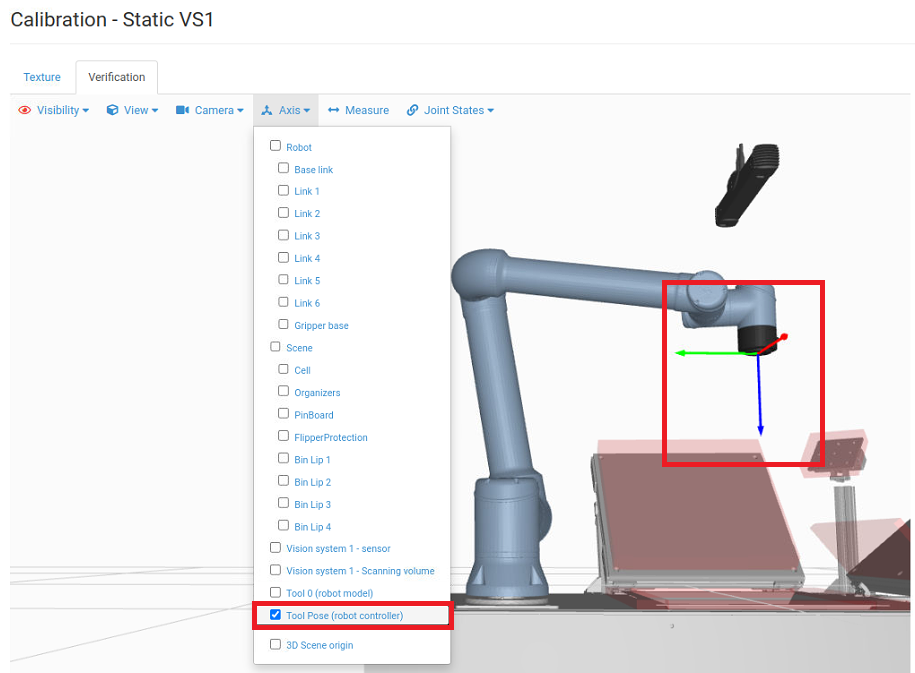

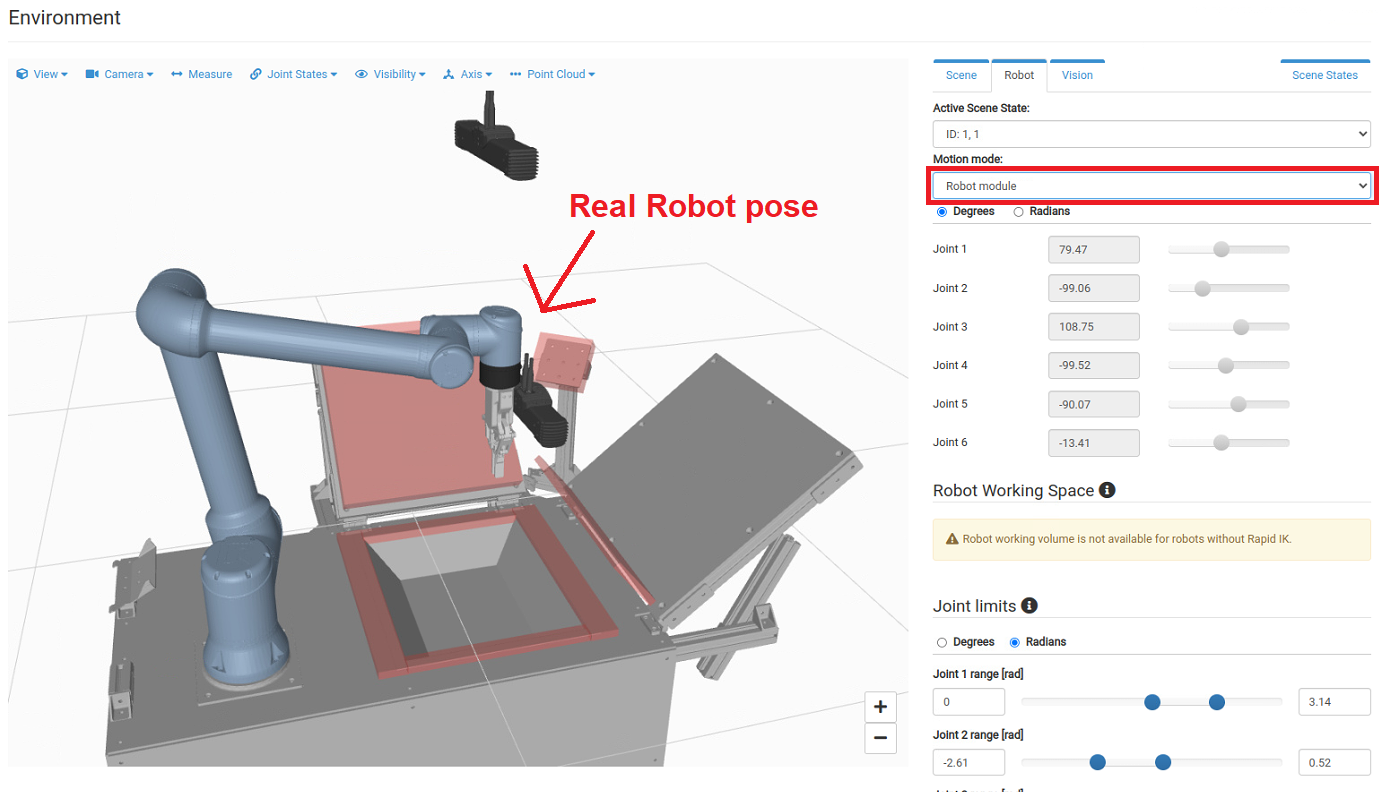

You can visually verify whether the correct zeroed tool pose is being reported by starting calibration and switching from the Texture tab to the Verification tab, then enabling visualization of Tool Pose (robot controller) in the Axis menu. The frame marker should be centered on the flange with the Z axis pointing down, and it should be identical to the Tool0 (robot model) frame.

3 Robot Module

The Robot module is designed to be easily integrated into existing applications.

Note: It is strongly recommended to read the Photoneo robotic API and Action requests prior to this section.

3.1 Connection procedures

Note: This procedure establishes the connection to the Action Request Server running on the Vision Controller side at the beginning of the program. Requests can be sent only after a successful connection has been established. Defined in photoneo_common.script - do not edit!

Request	Script definition	Input	Populates
Connect to Action Request Server (Vision Controller)	`pho_wait_for_server(server_ip, port = PHO_BINPICKING_PORT_DEFAULT, max_attempt = 1)`	`server_ip` `port` (default 11003) `max_attempt` (default 1)	`PHO_ERR_CODE`

3.2 Request List

This section describes available API calls provided by the Robot module. These procedures are intended for high-level control of the bin picking application.

Note: These procedures are defined in the photoneo_common.script API section and must not be edited!

Calibration requests

Request	Script definition	Input	Populates
Calibration Start	`pho_calib_start(solution_id, vision_sys_id)`	`solution_id` `vision_sys_id`	`PHO_ERR_CODE`
Calibration Add Point	`pho_calib_add_point()`	—	`PHO_ERR_CODE`
Calibration Save	`pho_calib_save()`	—	`PHO_ERR_CODE` `pho_calib_acc` - calibration accuracy `pho_camera_pose`
Calibration Stop	`pho_calib_stop()`	—	`PHO_ERR_CODE`

Bin picking requests

Request	Script definition	Input	Populates
Initialize	`pho_request_init(pho_start_pose, pho_end_pose, vision_sys_id = PHO_VISION_ID_DEFAULT, timeout = -1)`	`pho_start_pose` `pho_end_pose` `vision_sys_id` [optional, default 1] `timeout` [optional, default -1 - infinite]	`PHO_ERR_CODE`
Scan Regular	`pho_request_scan(vision_sys_id = PHO_VISION_ID_DEFAULT)`	`vision_sys_id` [optional, default 1]	`PHO_ERR_CODE` Note: The response is received by the Wait For Scan procedure.
Scan Meshing	`pho_request_trigger_scan(vision_sys_id, tcp_pose = PHO_NO_POSE)`	`vision_sys_id` `tcp_pose` [optional; when not provided, resolves to `get_actual_tool_flange_pose()`]	`PHO_ERR_CODE`
Reuse Scan	`pho_run_loc_on_last_scan(vision_sys_id)`	`vision_sys_id`	`PHO_ERR_CODE` Note: Runs localization again on the last acquired scan without triggering a new scan.
Wait For Scan	`pho_wait_for_scan_completion()`	—	`PHO_ERR_CODE`
Trajectory	`pho_request_trajectory(vision_sys_id = PHO_VISION_ID_DEFAULT)`	`vision_sys_id` [optional, default 1]	Note: The response is received by the Trajectory Receive procedure.
Trajectory Receive	`pho_receive_trajectory(timeout = -1)`	`timeout` [optional, default -1 - infinite]	`PHO_ERR_CODE` `pho_tool_point_invariance` `pho_gripping_point_id` `pho_gripping_point_invariance` `pho_dimension_x` (non CAD) `pho_dimension_y` (non CAD) `pho_dimension_rot` (non CAD) `pho_nn_label` (AI Solutions) `pho_max_z_height` (Layer Solution) `pho_tilt` (Layer Solution)
Get Object Cartesian Pose	`pho_request_object_pose(vision_sys_id)`	`vision_sys_id`	`PHO_ERR_CODE` `pho_object_pose` `pho_dimension_x` (non CAD) `pho_dimension_y` (non CAD) `pho_dimension_rot` (non CAD) `pho_nn_label` (AI Solutions) `pho_max_z_height` (Layer Solutions) `pho_tilt` (Layer Solutions)
Pick Failed	`pho_request_send_pick_failed(vision_sys_id = PHO_VISION_ID_DEFAULT)`	`vision_sys_id` [optional, default 1]	`PHO_ERR_CODE`
Get Vision System Status	`pho_request_get_vs_status(vision_sys_id)`	`vision_sys_id`	`PHO_ERR_CODE` `pho_num_localized` `pho_num_ready` `pho_process_state`
Change Bounding Box	`pho_request_change_bbox(vision_sys_id, bbox_id)`	`vision_sys_id` `bbox_id`	`PHO_ERR_CODE`
Change Environment Scene	`pho_request_change_env_state(state_id)`	`state_id`	`PHO_ERR_CODE`

Solution requests

Request	Script definition	Input	Populates
Change Solution	`pho_request_change_solution(solution_id)`	`solution_id`	`PHO_ERR_CODE`
Start Solution	`pho_request_start_solution(solution_id)`	`solution_id`	`PHO_ERR_CODE`
Stop Solution	`pho_request_stop_solution()`	—	`PHO_ERR_CODE`
Get Running Solution	`pho_request_running_solution()`	—	`PHO_ERR_CODE` `pho_running_solution`
Get Available Solutions (Deprecated)	`pho_request_available_solutions()`	—	`PHO_ERR_CODE` `pho_available_solutions`

Other requests

Request	Script definition	Input	Populates
Communication Check	`pho_request_comm_check()`	—	`PHO_ERR_CODE`

3.3 Bin Picking procedures

Note: These procedures are defined in the customer_definitions.script API section. Do not edit the pho_bin_picking() function itself - only the gripper procedures should be edited by the user according to their requirements.

Bin picking procedure	Description / Usage
Execute bin picking routine `pho_bin_picking` `(` `pho_start_position = pho_start_pose,` `vision_sys_id = PHO_VISION_ID_DEFAULT` `)`	Description Predefined procedure for the execution of the bin picking trajectory. This procedure must not be edited directly - to adapt the execution settings please read 3.4 Bin Picking movement parametrization. Input parameters: `pho_start_position` - start joint pose (one of the START_VS_ID positions, or a list of joint values in radians); the same variable used in the initialization request for this vision system `vision_sys_id` - vision system identifier Note: To execute the bin picking trajectory, make sure the PATH PLANNING TYPE setting on the Bin Picking Studio Settings page is set to PLAN JOINT AND LINEAR TRAJECTORIES. Warning: When using multiple start poses (different for multiple vision systems) be extra careful to be in the correct one before executing this procedure. The start pose is an input parameter in case the robot was not in that pose already (it will move there before the execution of the bin picking routine).
Gripper attach `gripper_attach` `(` `)`	Description A user-defined procedure. Typically it is the attach procedure used when the picked object is grasped in the Grasp waypoint. Usage It is automatically executed when the waypoint of the grasping method is configured to execute the Attach procedure when it is reached.
Gripper detach `gripper_detach` `(` `)`	Description A user-defined procedure. Typically it is the detach procedure used when the picked object is placed during the placing routine defined by the robot operator. Usage It is automatically executed when the waypoint of the grasping method is configured to execute the Detach procedure when it is reached. Note: Typically this procedure is not configured to be executed automatically in a waypoint - it should be called during placing which is implemented by the robot operator.
Gripper user-defined 1 `gripper_user_1` `(` `)`	Description A user-defined procedure.
Gripper user-defined 2 `gripper_user_2` `(` `)`	Description A user-defined procedure.
Gripper user-defined 3 `gripper_user_3` `(` `)`	Description A user-defined procedure.

3.4 Bin Picking movement parametrization

Bin Picking Studio supports up to 10 trajectory segments per single bin picking trajectory. The default number of segments is 4; if needed, additional segments can be configured on the Grasping method page of the BPS solution.

Depending on the amount of joint waypoints in each trajectory segment, the pho_bin_picking() procedure switches between ServoJ and MoveJ based motion execution:

ServoJ: used when the trajectory segment has three or more points.
MoveJ: used when the trajectory segment has only two points (Path Planning off, too high linear sampling on short segments, etc).

In order to change individual segment speeds, change the appropriate value in the array. For example, to increase the “Start to Approach” segment speed for ServoJ execution, decrease the first index in the servo time array. On the other hand, to slow down the “Approach to Grasp” segment speed for MoveJ execution, decrease the second index of the pho_vel array.

Users can find three basic speed parameter sets (SLOW, MEDIUM and FAST) for the default ServoJ motion execution in customer_definitions.script. In order to specify the desired speed for individual trajectories, uncomment the relevant group of parameters. By default the MEDIUM parameter speed set is selected.

#-------------------------------------------------------------------------
#------------------- BIN PICKING SPEED SETTINGS --------------------------
#-------------------------------------------------------------------------

# If PATH PLANNING TYPE = PLAN JOINT AND LINEAR TRAJECTORIES then uncomment one of the groups of parameters

# slow
# pho_servo_time = [0.1, 0.1, 0.1, 0.1, 0.1, 0.1, 0.1, 0.1, 0.1, 0.1]
# pho_lookahead_time = [0.1, 0.1, 0.1, 0.1, 0.1, 0.1, 0.1, 0.1, 0.1, 0.1]
# pho_servo_gain = [120, 120, 120, 100, 100, 100, 100, 100, 100, 100]

# medium speed
pho_servo_time = [0.1, 0.1, 0.1, 0.1, 0.1, 0.1, 0.1, 0.1, 0.1, 0.1]
pho_lookahead_time = [0.1, 0.1, 0.1, 0.1, 0.1, 0.1, 0.1, 0.1, 0.1, 0.1]
pho_servo_gain = [100, 100, 100, 100, 100, 100, 100, 100, 100, 100]

# fast speed
# pho_servo_time = [0.05, 0.05, 0.05, 0.05, 0.05, 0.05, 0.05, 0.05, 0.05, 0.05]
# pho_lookahead_time = [0.1, 0.1, 0.1, 0.1, 0.1, 0.1, 0.1, 0.1, 0.1, 0.1]
# pho_servo_gain = [75, 75, 75, 75, 75, 75, 75, 75, 75, 75]

# If PATH PLANNING TYPE = PATH PLANNING OFF then the following parameters control the movements
pho_acc = [1.4, 1.4, 1.4, 1.4, 1.4, 1.4, 1.4, 1.4, 1.4, 1.4]
pho_vel = [2.0, 2.0, 2.0, 2.0, 2.0, 2.0, 2.0, 2.0, 2.0, 2.0]
pho_time = [0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0] # if time is specified (pho_time > 0) pho_acc and pho_vel parameters are ignored
pho_blend = [0.02, 0.02, 0.02, 0.02, 0.02, 0.02, 0.02, 0.02, 0.02, 0.02]

Warning: Exercise caution when enabling the blending option for the MoveJ instruction (PATH PLANNING OFF option). If a waypoint falls within the blending region of the preceding or following waypoint, the movement to this waypoint will not be executed. This can pose problems for precise waypoints, such as those required for grasping, where exact positioning is critical. If the MoveJ command used to reach the previous waypoint has a blending region that encompasses the next precise waypoint, the movement to this precise waypoint will be skipped. To avoid this issue, ensure that the blending region is always smaller than the distance between the waypoints.

3.5 Example Programs

There are several URP template programs available in the Photoneo UR module that demonstrate how to properly use the requests listed in 3.2 Request List for various use cases:

URP example	Description
pho_main_basic pho_main_basic_hand_eye	This basic example demonstrates the basic workflow: it shows how to initialize the system, send a scan request, request a trajectory, receive the trajectory as joint waypoints, and execute the resulting motion path. The example also demonstrates error handling, as each function returns an error value assigned to `PHO_ERR_CODE`. Note: Ensure that the Start and End waypoints are configured in the `Vision_positions` folder, as described in 4.1 Teach Positions.
pho_calibration_basic pho_calibration_auto	The basic calibration examples. Requirements: Make sure RTDE is enabled - see 2.2 Enabling Real-Time Data Exchange (RTDE). Initial calibration of the Vision System must be started and confirmed manually by the user on the Bin Picking Studio side. Calibration steps Teach all 9 calibration poses. Points can be added to the calibration table manually by clicking “Add Calibration Point” on the Bin Picking Studio side, or by using `pho_calib_add_point()` requests directly from your program. Calibration accuracy - the calibration error should generally remain below 3 mm. Higher errors typically indicate a systematic issue in the calibration setup. Automatic recalibration (optional) - once the first calibration is successful and automatic recalibration is enabled in the Vision System settings, call `pho_calib_start()`, `pho_calib_stop()` and `pho_calib_save()` to manage the recalibration cycle. Important: The calibration object (either a ball or marker pattern) must remain in its original position to ensure successful automatic recalibration.
pho_main_basic_multi_vs	Same as pho_main_basic, but with switching between two Vision Systems. The `VISION_SYS_ID` variable is essential in this setup - it determines which Vision System will be activated or queried for trajectory data. Vision System switching is handled within the Changing Vision System folder located at the bottom of the Photoneo Pick and Place loop folder.
pho_main_change_env	Same as pho_main_basic but with switching between two environment states. It utilizes the `pho_request_change_env_state()` request to activate the desired environment. The `ENVIRONMENT_ID` variable determines which environment state will be activated during the next switch. Environment switching logic is managed within the Switching between environment states folder, located at the bottom of the Photoneo Pick and Place loop folder.
pho_main_change_solution	Same as pho_main_basic but with all solution-switching related requests. It shows how to activate different solutions using `pho_request_start_solution()` or `pho_request_change_solution()`, with the `SOLUTION_SYS_ID` variable determining which solution will be triggered. Solution switching logic is organized within the Changing solution folder, located at the bottom of the Photoneo Pick and Place loop folder.
pho_main_get_object_pose	Similar to pho_main_basic, but instead of requesting a trajectory, the robot retrieves the Cartesian pose of the object. This is useful for applications such as pick verification, slip sheet detection and basic picking tasks. Note: The system returns the raw Cartesian pose from localization. The origin is defined by the object’s STL file - no gripping points or invariance transformations are applied. The result is stored in `pho_object_pose`.
pho_main_get_status	Same as pho_main_basic, but with `pho_request_get_vs_status()` request calls. This request can be called repeatedly in short intervals during the localization phase and returns `pho_num_localized` (number of objects localized), `pho_num_ready` (number of objects ready for picking) and `pho_process_state` (current state of the vision system). These variables are commonly used for advanced decision-making, particularly to determine the optimal timing for initiating the pick procedure.
pho_main_multiview_static	Static meshing example. This process demonstrates stitching multiple scans together before initiating localization, which is particularly useful for complex scenes or large objects. It uses a static approach, where the robot pauses at each scanning position to trigger and capture a scan. Requirements: State Server must be operational throughout the process; `MESH_DYNAMIC` is set to `False` to disable Dynamic Meshing. Procedure: the robot stops at each designated scanning location to trigger and capture a scan; after each scan, `pho_request_trigger_scan()` is followed by `pho_wait_for_scan_completion()`; once capturing is complete, localization is started with a regular `pho_request_scan()` (this does not trigger an actual scan). Keep the total number of scans below 10 for optimal performance.

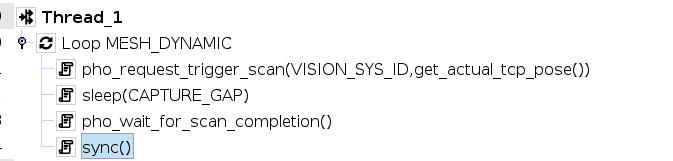

pho_main_multiview_dynamic	Dynamic meshing example. This setup leverages Photoneo Instant Meshing technology together with the Parallel structured light technique provided by MotionCam-3D. Dynamic Meshing cannot be used with standard PhoXi 3D Scanners. Requirements: `MESH_DYNAMIC` must be set to `True`; `CAPTURE_GAP` should be approximately 500 ms to regulate scanning frequency and prevent system oversaturation; `system_status` monitors the status of the capturing process. Procedure: capturing is initiated while the robot moves through predefined start/end waypoints (Motion Cam triggers scans at the `CAPTURE_GAP` interval); robot movement is temporarily halted by the Photoneo interface until `system_status` transitions to `PHO_MESHING` after the first scan is received; during dynamic capturing, only the final `pho_request_trigger_scan()` is followed by `pho_wait_for_scan_completion()`; capturing is concluded with a regular `pho_request_scan()` to start localization. Keep the scanning trajectory smooth, avoid abrupt rotations and keep the scanned area within the field of view to prevent tracking loss. The total number of scans should not exceed 60.
pho_main_reuse_scan	Same as pho_main_basic_multi_vs, but introduces the `pho_run_loc_on_last_scan()` request. This is particularly useful in scenarios where the scene remains unchanged since the last scan, but localization needs to be repeated with a different configuration (e.g. searching for different objects, using different bounding boxes, or applying different settings). A regular scan is performed for VS1 to capture the scene, then `pho_run_loc_on_last_scan()` is used for VS2 to reuse the scan data from VS1 without a new scan.
pho_change_bounding_box	Same as pho_main_basic, but with switching between two bounding boxes. The `VISION_SYS_ID` and `BOUNDING_BOX_ID` variables determine which bounding box of the Vision System will be activated or queried for trajectory data. Bounding box switching is handled within the Changing Vision System folder located at the bottom of the Photoneo Pick and Place loop folder.

3.6 Error handling

If an error occurs during the execution of the operation requested by the sent request the global variable informing about an error occurrence is set to true (PHO_OCCURED_ERR) and the error code is stored in the global variable PHO_ERR_CODE. It is recommended to implement adequate error handling for your particular application after each synchronous request and response receiving procedure.

Error codes together with their description and troubleshooting can be found here.

The most important error codes are defined as constants in the system module photoneo_common.script. These error codes are:

Error code	UR Script constant
No error (0)	PHO_NO_ERROR = 0
Service error (1)	PHO_SERVICE_ERR = 1
Communication error (3)	PHO_COM_FAILURE = 3
Bad data (4)	PHO_BAD_DATA = 4
Timeout (5)	PHO_TIMEOUT = 5
Path planning failed (201)	PHO_PLANNING_FAILED = 201
No object found (202)	PHO_NO_PART_FOUND = 202
Vision system not initialized (203)	PHO_NOT_INITIALIZED = 203
Empty scene (218)	PHO_EMPTY_SCENE = 218
Wrong bin picking configuration (255)	PHO_WRONG_BP_CONF = 255

Note: Example programs provide basic error handling.

4 Runtime

Once the solution is fully configured on the Vision Controller side, it is time to finalize the remaining steps on the robot side and proceed to executing the bin picking program.

4.1 Teach Positions

After opening pho_main_basic.urp or another template, you will notice 4 local poses that need to be touched up before running the program: Home, Before_place, Place and Deappr_place. Touch up these poses appropriately.

Besides these 4 local poses it is also essential to define the Start and End positions for all Vision Systems used in the current solution. These positions define the initial and final trajectory waypoints and are required by the initialization request for each Vision System. Usually they are touched up in such a way that the robot tool is located above the center of the bin.

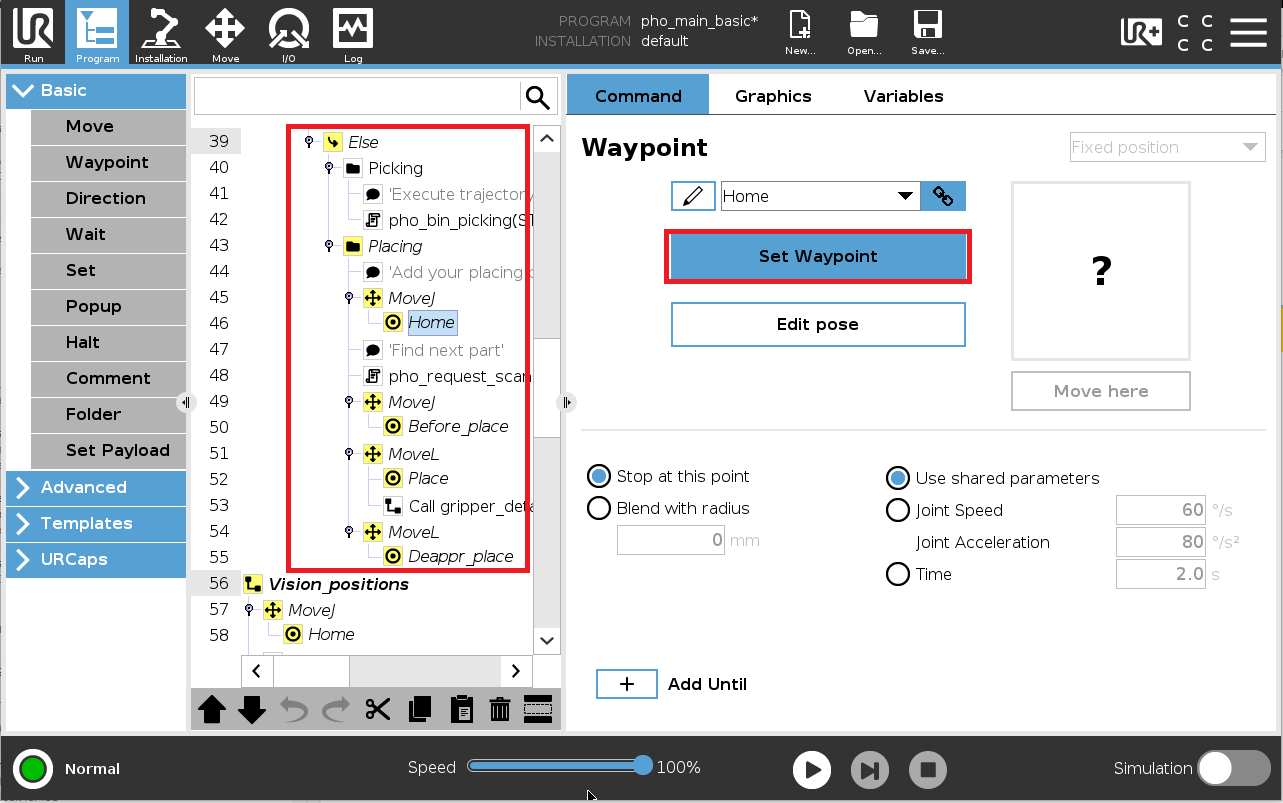

To set the Start and End waypoints, navigate to the Vision_positions folder at the bottom of the program, select the waypoint START_VS_1, and teach it. Then repeat the process for the waypoint END_VS_1.

Note: Don’t edit the position names.

4.2 Gripper commands

Gripper procedures are empty by default and must be configured by the user to execute the appropriate gripper IO commands.

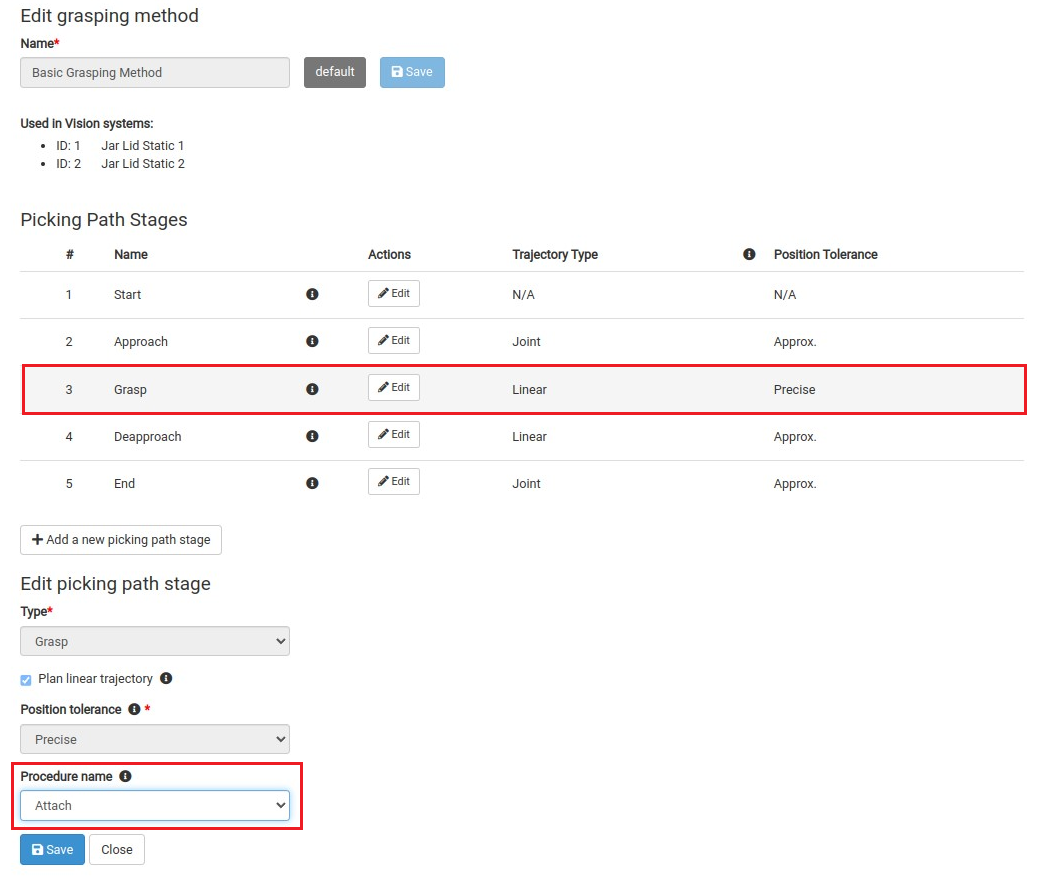

The Grasping Methods page in Bin Picking Studio enables users to configure a gripper command to be executed at each bin picking trajectory major waypoint. For example, if the Attach procedure is defined at the Grasp waypoint, the pho_bin_picking() procedure will call the gripper_attach() subprogram after reaching the Grasp waypoint.

4.3 Prerequisites

Final pre-deployment check before running the bin picking interface from the robot side. Make sure that:

The Bin Picking solution is properly configured on the Vision Controller side
Network setup on the robot side is completed and the State Server works (see 2 Robot Controller Setup)
All Vision Systems defined in the solution are calibrated
The Start and End pose for all Vision Systems have been touched up
All local poses in the main program have been touched up properly
Gripper procedures are prepared and working

4.4 Running pho_main_basic program

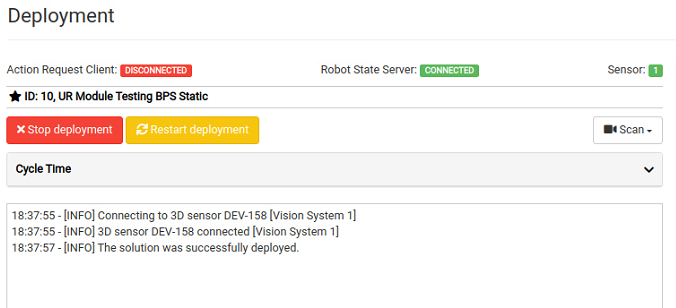

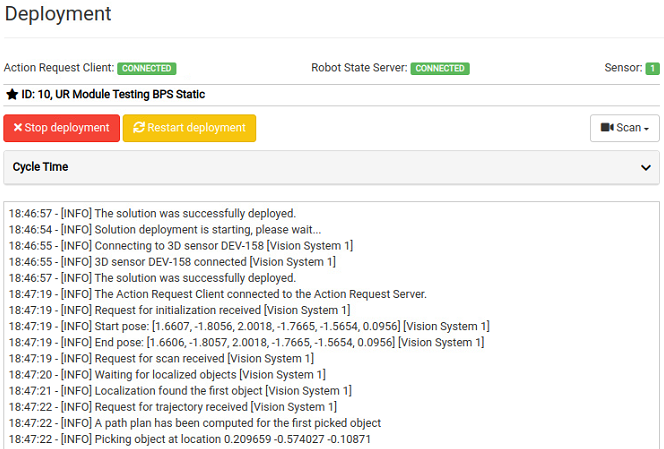

Deploy your solution. The Action Request Client (Robot) status on the Deployment page should be DISCONNECTED from the Action Request Server, if the communication hasn’t been established yet.

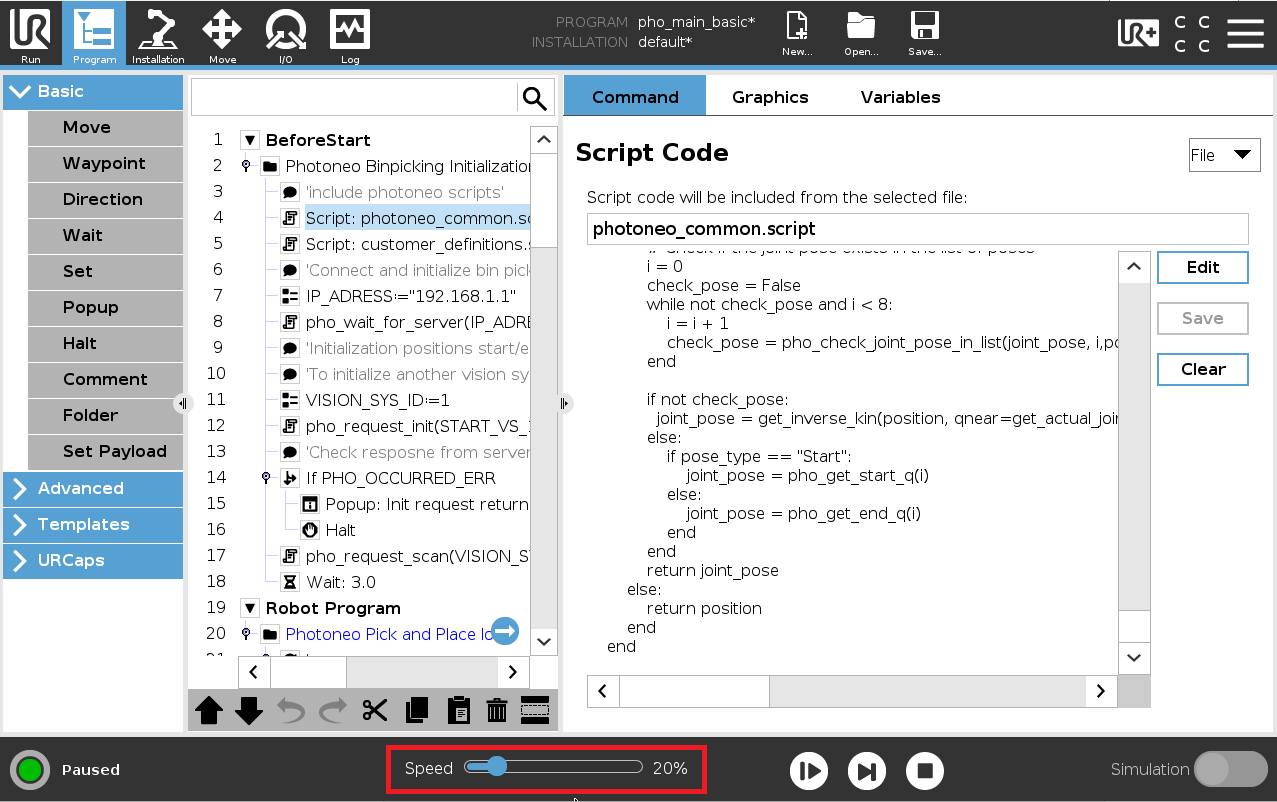

NOTE: It is strongly recommended to decrease the override speed to 20% before running the program for the first time.

If the connection has been established properly you will see the Action Request Client and Robot State Server status turn to CONNECTED. At this point the sensor should capture the first scan and localization should start localizing objects.

If there is a pickable object in the scene and the trajectory for the first object has been received by the robot controller, the robot should start moving towards the first object.

If everything looks fine, keep moving the robot towards the first target and check if the path is correct. At this point, if the robot is too far from the object or pushes the object too deep, make modifications on the Bin Picking Studio Tool Point or Gripping Point pages.

If trajectories look fine, set up your own placing routine and slowly ramp up the speed back to 100%.

Congratulations, you have successfully deployed the Photoneo Universal Robots interface. You can now focus on improving your application further. Use the CheatSheet and Program Templates as your guidelines.

5 Robot module update

To update your current robot module to a version compatible with the Bin Picking Studio version you are using, please follow these steps:

Back up your custom settings - make a backup of your customer_definitions.script file, as it contains your custom settings and gripper action procedures
Remove old scripts - delete the scripts currently loaded in your main URP application, specifically photoneo_common.script and customer_definitions.script
Load new scripts - copy the new versions of photoneo_common.script and customer_definitions.script to the robot controller and load them into your main URP application, replacing the old ones
Reapply modifications - transfer your modifications from the old customer_definitions.script to the new version of the script
Review API changes - carefully read through the API changes introduced in the new version of the robot module and update your current API calls in the main program as necessary to align with these changes

To check the version of customer_definitions.script, check the script’s header and look for the Customer Definitions version. To check the version of photoneo_common.script, check the script’s header and look for the library version.

6 Contact Information

Headquarters
Zebra Technologies Slovakia s.r.o.
Plynárenská 6
821 09 Bratislava, Slovakia

Technical support
Contact us at the Help Center.
Visit the Photoneo support pages at www.photoneo.com/support.

Orders and inquiries:
photoneo-sales@zebra.com
photoneo-sales-us@zebra.com
